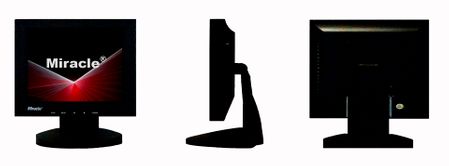

LT08B-TTL, Miracle Business 8" Monochrome TTL LCD Monitor,
MGA/CGA/EGA 9-Pin, Black Casing

LT08B-TTL, Miracle Business 8" TTL LCD,
MGA/CGA/EGA 9-Pin, Black Casing


MIRACLE 8.0" LCD TTL Monitor 9Pin

LCD Display 8.0" TFT LCD, Active Matrix Panel
Signal input MDA,CGA,EGA TTL (DB9)
Response Time 25ms
Dot Pitch 0.2025 (H) x 0.2025 (V) mm
Resolution MDA 720x350; CGA 640x200; EGA 640x350
Scanning Frequency Hor. 13KHz to 48KHz adjustable
Ver. 40Hz to 79Hz adjustable
Contrast Ratio 500 : 1
Brightness 250 cd/m²/font>
Display color 16M colors
Viewing Angle L/R: +70º ~ -70º   U/D: +50º ~ -60º/font>
Display Size 162(H)mm x 121.5(V)mm
Power Source AC: 100 ~ 240V, 50 ~ 60Hz; Output: DC 12V/1.5A
Power Consumption 16W; standby <5W
EPA VESA On, Off, Suspend, Stand by
User Controls Power on/off, Menu, Auto, Up/Down +/-, OSD
Input Connector 9 pin D-type signal cable
Operating Temp./Humidity 5ºC ~ 35ºC / 20% ~ 80% (no condensation); Altitude to 10,000 feet
Storage Temp./Humidity -20ºC ~ 60ºC / 10% ~ 90% (no condensation)
Dimension 8.3"W x 5"D x 8.5"H
Weight 2.6 lbs Net, 4 lbs with packing
Certification FCC, CCC, CE

LT08B-TTL, Miracle Business 8" TTL LCD, MGA (Monochrome Mono) /CGA/EGA 9-Pin, Black Casing
